INPUT
-Configuration: Stereo.
-Impedance: >10kΩ load impedance, electronically balanced1.
-Nominal Input Level: Software adjustable from –9.0 to +13.0 dBu (VU).
-Maximum Input Level: +27 dBu.

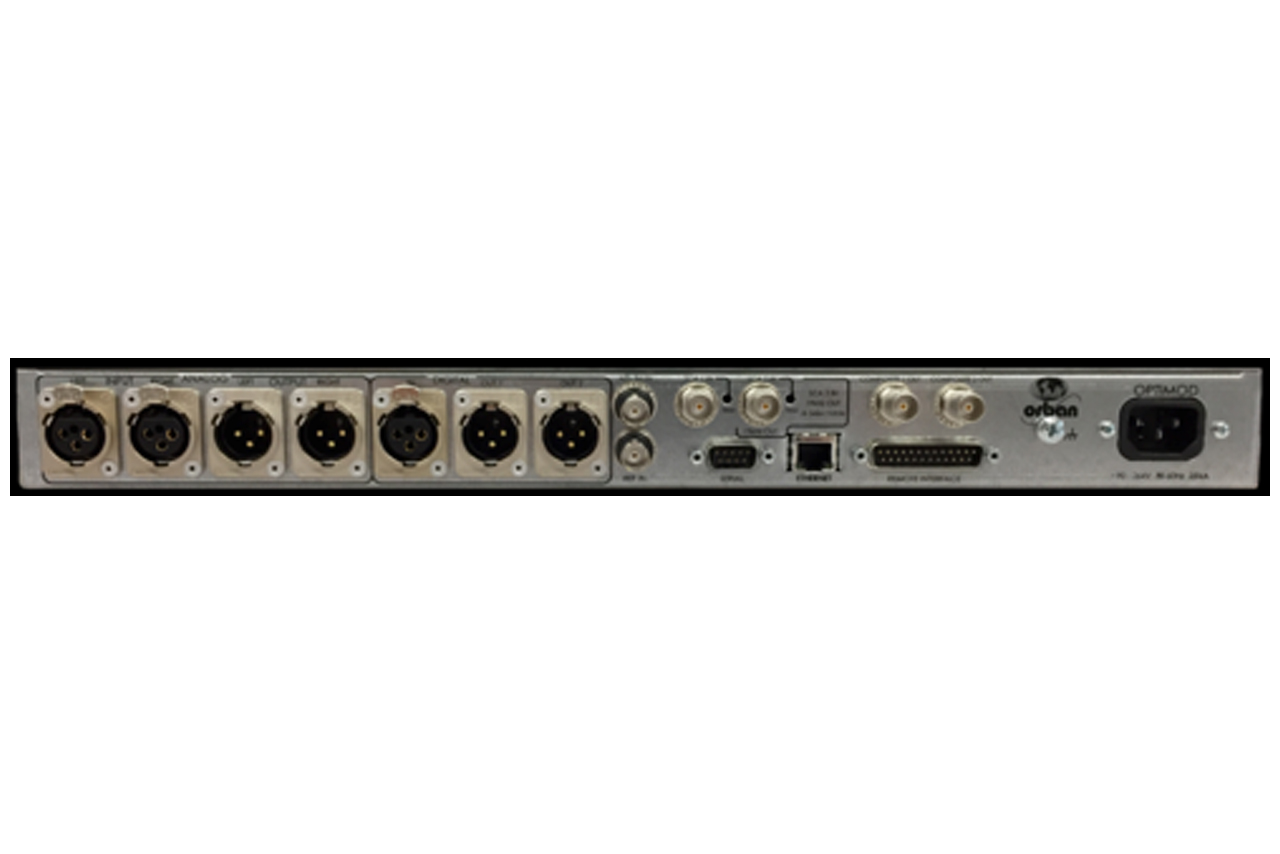

-Connectors: Two XLR-type, female, EMI-suppressed. Pin 1 chassis ground, Pins 2 (+) and 3 electronically balanced, floating and symmetrical.
-A/D Conversion: 24 bit 128x oversampled delta sigma converter with linear-phase anti-aliasing filter.
-Filtering: RFI filtered, with high-pass filter at 0.15 Hz.
OUTPUT
-Configuration: Stereo. Flat or pre-emphasized (at 50μs or 75μs), software-selectable.
-Source Impedance: 600Ω or greater, balanced or unbalanced. Termination not required or recommended.
-Output Level (100% peak modulation): Adjustable from –6 dBu to +24 dBu peak, into 600Ω or greater load, software-adjustable.
-Signal-to-Noise: >= 90 dB unweighted (Bypass mode, de-emphasized, 20 Hz–15 kHz bandwidth, referenced to 100% modulation).
-L/R Crosstalk: <= –70 dB, 20 Hz–15 kHz.
-Distortion: <= 0.01% THD (Bypass mode, de-emphasized) 20 Hz–15 kHz bandwidth.
-Connectors: Two XLR-type, male, EMI-suppressed. Pin 1 chassis ground, Pins 2 (+) and 3 electronically balanced, floating and symmetrical.
-D/A Conversion: 24 bit 128x oversampled, with high-pass filter at 0.15 Hz (–3 dB).
-Filtering: RFI filtered.
-Configuration: Stereo per AES3 standard, 24 bit resolution, software selection of stereo, mono from left, mono from right or mono from sum.
-Sampling Rate: 32, 44.1, 48, 88.2, or 96 kHz, automatically selected.
-Connector: XLR-type, female, EMI-suppressed. Pin 1 chassis ground, pins 2 and 3 transformer balanced and floating, 110Ω impedance.
-Input Reference Level: Variable within the range of –30 dBFS to –10 dBFS.
-J.17 De-emphasis: Software-selectable.
-Filtering: RFI filtered.
