-Video Outputs 1 x HD/SD-SDI 1 x CVBS 1 x HDMI (V1.3) -Output Level 1 V p-p, 75 ohms -Image Pickup Element 1/2.8" type progressive scan Sony CMOS sensor -Effective Picture Elements Approx. 2.14 MP -Resolution HD / FHD / SD (CVBS only) -Supported Formats HDMI & SDI: 1080/59.94p (4:1:1), 1080/59.94i, 1080/29.97p, 720/59.94p 1080/50p (4:1:1), 1080/50i, 1080/25p, 720/50p -CVBS: 480i/576i -S/N Ratio 50 dB -Minimum Illumination Color: 0. . . .

Read More

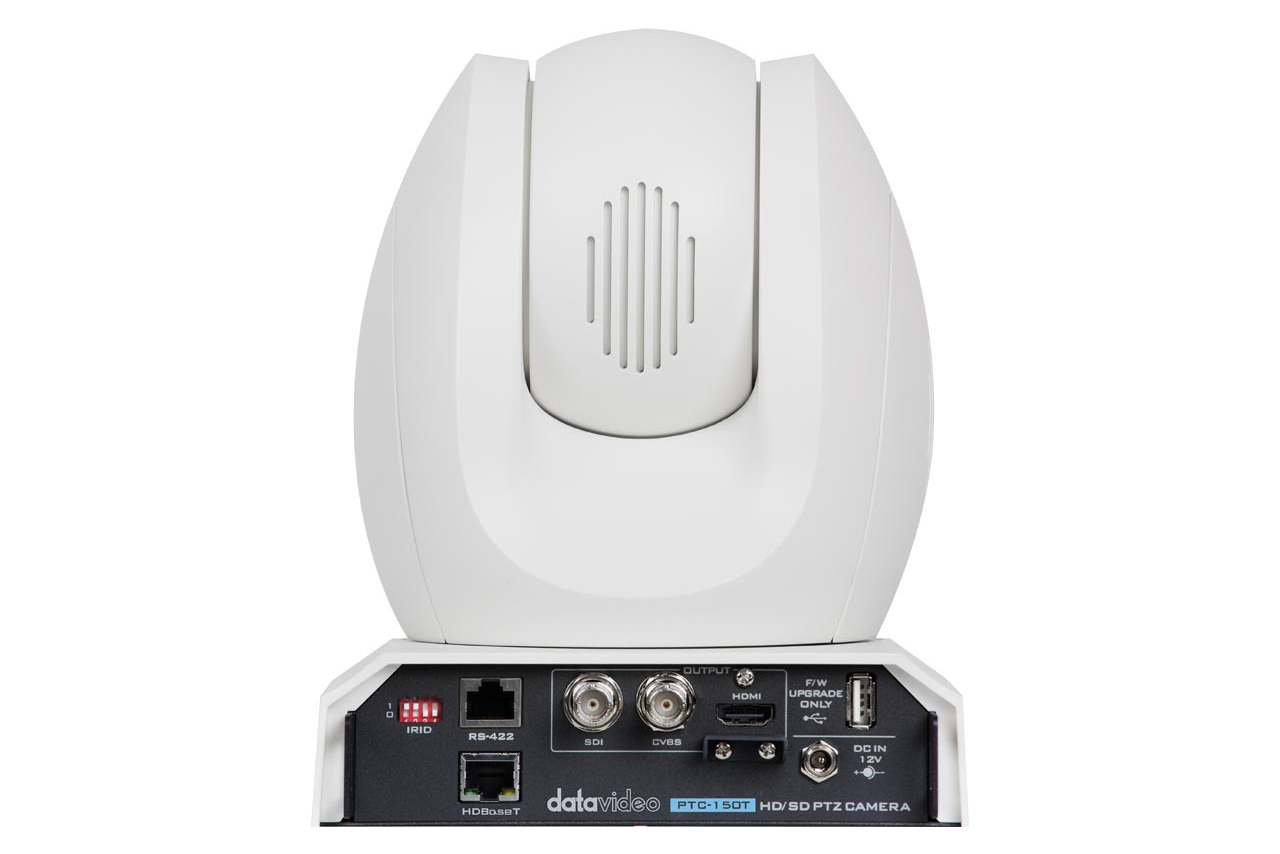

-Video Outputs
1 x HD/SD-SDI
1 x CVBS
1 x HDMI (V1.3)
-Output Level 1 V p-p, 75 ohms
-Image Pickup Element 1/2.8″ type progressive scan Sony CMOS sensor
-Effective Picture Elements Approx. 2.14 MP
-Resolution HD / FHD / SD (CVBS only)
-Supported Formats HDMI & SDI: 1080/59.94p (4:1:1), 1080/59.94i, 1080/29.97p, 720/59.94p 1080/50p (4:1:1), 1080/50i, 1080/25p, 720/50p
-CVBS: 480i/576i
-S/N Ratio 50 dB
-Minimum Illumination Color: 0.4 lx (f/1.6, 1/30 sec, 50 IRE, high gain)
-Black / White : 0.03 lx (f/1.6, 1/30 sec, 50 IRE, high gain)
-Electric Shutter 1/50 (1/60), 1/120 (1/100), 1/250, 1/500, 1/1000, 1/2000 sec
-Electronic Sensitivity UP 0 – 128x
-Gamma Off, AUTO, Smart-1, Smart-2, Smart-3
-Iris Control Auto / manual
-Digital Noise Reduction (DNR) On / off

Read Less
