Chassis Tabletop
Signal System NTSC/PAL auto-detecting
Processing 10-bit
Screen Size 17.3″
Resolution 1920 x 1080
-Supported Input Resolutions:
720 x 480i (NTSC)
720 x 576i (PAL)
1280 x 720p (50/59.94/60 Hz)
1080i (50/59.94/60 Hz)
1080p (23.98/24/25/30/50/59.95/60 Hz)
-Aspect Ratio 16:9, 4:3 switching
-Display Colors Not specified by manufacturer
-Viewing Angle Top: 60°
-Bottom, left, right: 80°
-Brightness 400 cd
-Contrast 600
-Response Time Not specified by manufacturer
-Tally Live (red) / Cued (amber)
-Audio Built-in stereo speakers

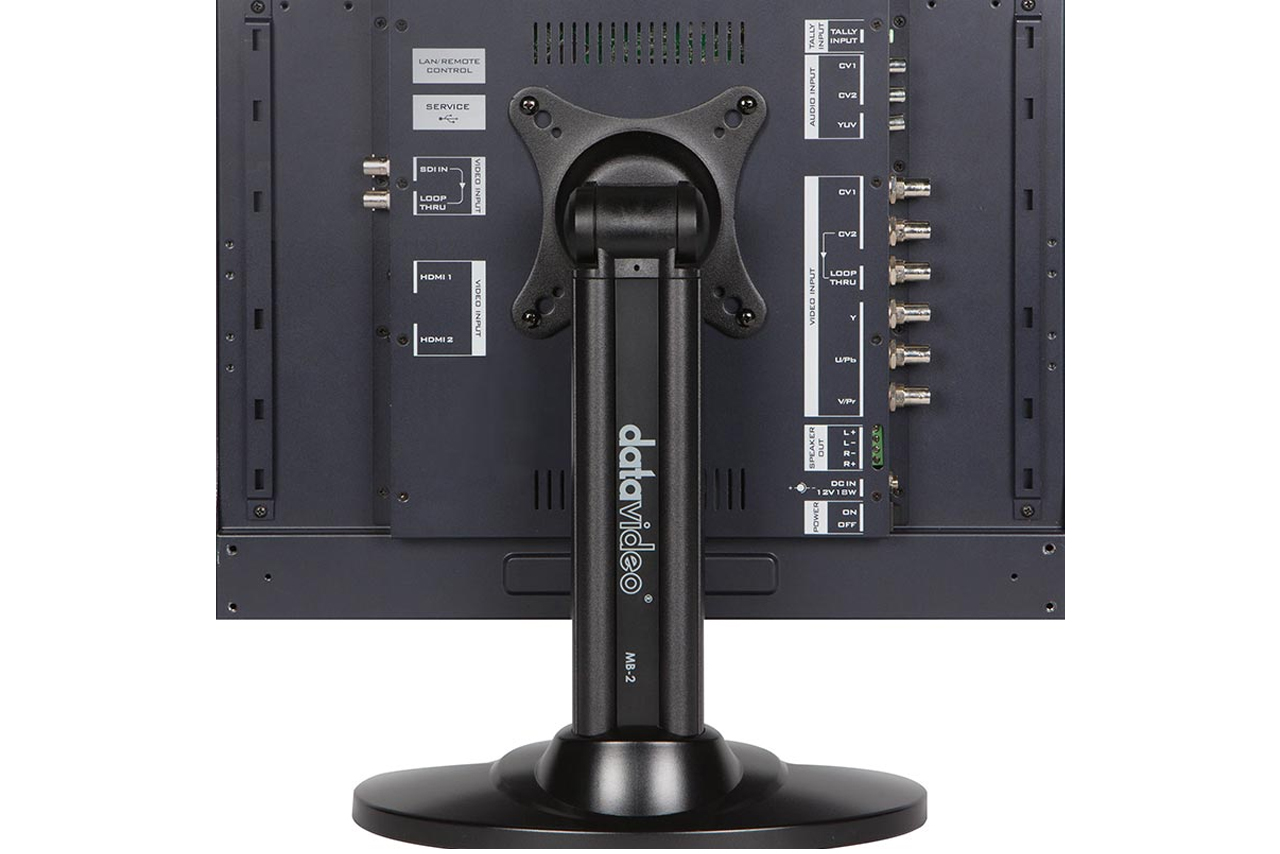

-Inputs:
2 x HDMI
2 x 3G/HD/SD-SDI
1 x Component YUV
2 x Composite video
4 x Mono RCA audio
-External Sync (Loop Thru):
1 x 3G/HD/SD-SDI
2 x Composite video
-Maintenance 1 x USB 2.0 auto firmware upgrade
-Operating Temperature 32 to 122°F (0 to 50°C)
-Storage Temperature 14 to 140°F (-10 to 60°C)
-Power Requirements 12 VDC
-Power Consumption ~30 W
